PCHE plate and channel are in wide use in nuclear reactors and HB cycles
If you think of a modern wonder in industries, we have something for you as PCHE plate and channel. In multiprocessing units, this technology proves to be beneficial because of its ability to bring promising advantages. PCHE plates and channels are in wide use in nuclear reactors and Helium Brayton cycles. Being a robust and efficient system, it remains the most effective technology. However, as effective and efficient as the system is, the system is highly compact and complex. Its construction process is so complex that it must be sustainable to withstand high heat transfer coefficient and high air pressure in nuclear reactors. It equally must be strong enough to face a different range of temperatures. Therefore, this article intends to address everything you need to know about PCHE plates and channel optimization and their associated benefits. For an in-depth analysis of its material and construction click here
What are PCHE Plates and Channel?
Before going into the in-depth details of the technical features of PCHE plate and channel, it is mandatory to look at what exactly is PCHE. PCHE stands for Printed Circuit Heat Exchanger. It is a specialized technology that gets manufactured using a highly technical diffusion bonding process.
Diffusion Bonding
The diffusion bonding process is not just similar to that of an ordinary welding. However, it is a solid-state joining technology. Therefore, PCHE is in short acts as a heat transfer technology widely used in most nuclear reactors and Helium Brayton cycles. Without this the heat is so high that it may explode the whole system. Moreover, there diffusion bonding process carries no such welds, joints, and bolts. It on the other is a printed circuit without any joint. Therefore, the chances of failure in PCHE are very low. Consequently, making the unit so stronger as to supports the maximum heat transfer performance possible.
Micro Channels
The channels however in PCHE plate and channel are micro-channel technology. These channels are so small and thin which reduces the temperature and thereby makes the system cools down. In contemporary times there are industries like STOLLPCHE which are manufacturing lightweight highly complex PCHE models. These models eventually are 85% much lighter than the ones used traditionally as Shell Heat Exchanger and Tube Heat Exchangers. The light weight model consequently helps in the reduction of construction cost. It is because by this the additional cost of pipes and frames gets omitted.
For this reason, hence, these PCHE light weight micro channels are side in use in pharmaceutical industries. Other industries such as upstream hydrocarbon and oil refining units are the leading sectors using PCHE technology. The prominent names are Shell, Petrobras, BP and ExxonMobil.
All You Need to Know About PCHE Plates and Channel Optimization
The primary thing to know about the PCHE plate and channel is its design and construction process. The first thing that comes in its manufacturing is a thin metal sheet. There are a lot of metal sheets that are thin and light weight. All these sheets are etched in a specific pattern to serve the specific purpose. Different industries and processes use different etched sheets.
After that, the etched plates go through the diffusion bonding process where we join these sheets together using the strongest bonding possible. It is because there is no compromise on bonding. A weak bonding results in damaging the PCHE and whole operations. Once done with assembling and bonding, the whole structure appears to be a complex path map and passage. Consequently, serving the purpose to control heat, fluid, and pressures. Let us discuss each step and phase of PCHE plate channels separately.
Photo-Etching
The first step is the process of etching the thin metal plates famous as PCHE plate and channel. Etching you may call is the process of designing plates with various but purposeful designs and combination patterns. The patterns are also famous as platelets. For a material, whether liquid or gas, these designs play an integral role in their smooth flow process.
Cleaning
In manufacturing PCHE plate and channel, next comes the critical step of cleaning the stack of these platelets. The cleaning of plates requires a neat, clean and tidy environment with zero dust compromise. Cleaning happens with the help of heat and pressure. A specific heat and pressure level is required to perform the cleaning of platelets stacks. The purpose of cleaning is to eliminate all the possible impurities from the surface. It also helps in paving way for smooth growth between different components of the system.

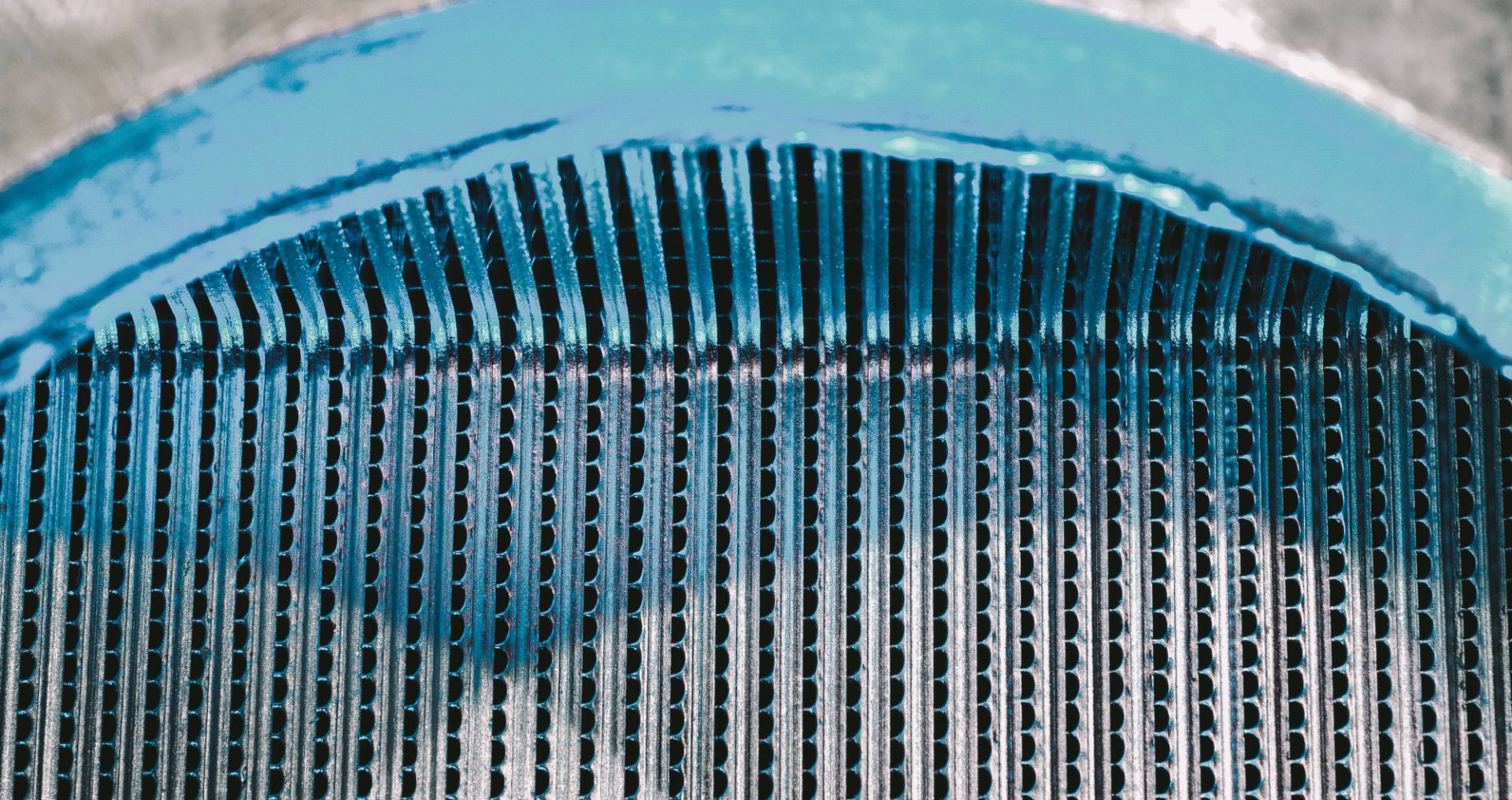

Diffusion Bonding Process
A highly complicated but equally important step is famous as diffusion bonding process. A scattered set of platelets stack to a complete monolithic model happens because of diffusion bonding. Diffusion bonding involves no welds, joints, bolts or rivets. It is a robust bonding mechanism between plates that ensures the smooth and integral flow of material between the platelets.
Assembling Of PCHE System
Last step in PCHE plate and channel optimization is the joining or assembling of all the inlets and outlets flows and distribution header the parent frame. This step is the most crucial of all. It is because here involves the careful monitoring of all the thermal gradients in the system. It also takes into account any possible residual stress factor, which may cause damage to the whole structure. Moreover, even a slight careless assembling will result in the separation of header and diffusion joints. Eventually turning the whole system up and down.
Advantages Of Using PCHE Plate and Channels
In a standardized PCHE plate and channel optimization process, there are no chances of leakage, or weakness of any sort. The robustness makes the system operate well with benefits as:
- Compact shape saves additional cost of material and space gathering.
- Operatin
g Performance and Parameters appear efficient and effective with a unique floe pattern. - The flow of fluid reduces that additionally promises low cost and operational savings.
- Multiprocessing in a single unit.
- High Integrity in the system brings safety and security par excellence.
g Performance and Parameters appear efficient and effective with a unique floe pattern.For more information about the PCHE and its benefits and how the technology enables the clients in achieving the high goals, contact us here.
