Your Comprehensive Guide on Solid-State Diffusion Bonding
This article will tell you everything you need to know what solid-state diffusion bonding is. Not only this, but we will also tell you about the process of solid-state diffusion bonding, its advantages, and its applications. Stay tuned!
Introduction
Solid-state diffusion bonding is a welding process. The manufacturers do not include any combination stage or fluid in this process. They frame the weld joints from the unadulterated strong state all things being equal. In addition, the interaction doesn't soften the welding material. Moreover, plastic distortion takes place at the interface surface. The whole dissemination holding measure happens in a vacuum or a fixed climate. The climate is exceptionally imperative to diminish the oxidation level simultaneously.
What is Solid-State Diffusion Bonding?
To put it in straightforward words, solid-state diffusion bonding is a welding cycle. This interaction applies to both comparable and various materials. However, you can even join the ceramic materials utilizing this interaction.
The cycle includes the dispersion of particles on the joint interface. The whole interaction of dispersion holding happens at a raised temperature. The best part about the cycle is that it doesn't need any filler materials. Also, the joint interaction of comparative materials is altogether autogenous. You can even utilize interlayers during the dissemination holding of unique materials.
The Principle
The essential principle of solid-state diffusion bonding rotates around bonding. The standard of diffusion is the development of particles or molecules from a higher fixation district to a lower focus locale.
The experts apply high tension on both the materials that are set on one another. This aids in getting the cycle underway.
Also, the whole interaction of dissemination holding speeds up by heat. In any case, the significant thing to recall here is that the warmth temperature should not be excessively high. It should just reach between 50 to 70% of the metal's dissolving temperature.
Solid-State Diffusion Bonding – The Process
The process of solid-state diffusion bonding involves various stages. Let’s check out these stages below.
1. Preparing the Surface of the Welding Plates
The initial step includes the readiness of both the plate surfaces for welding. The fundamental necessity of the dispersion holding measure includes making the interface surfaces level. This is the thing that occurs in this progression.
Both the interface surfaces are at a similar level. What's more, the interface surfaces are machined, cleaned, and cleaned also.
Thus, the synthetic toxins are taken out from the surface. It is significant because the presence of foreign substance particles can decrease the degree of dissemination between the welding plates.
2. Clamping of the Plates
The subsequent stage includes the clasping and the situation of the plates more than each other. This interaction happens in a fixed climate or a vacuum chamber. The idle climate or the vacuum chamber is significant because it forestalls oxidation in the welding surfaces.
3. Applying High Temperature and Pressure
The third step requires the beginning of the dispersion cycle. For this reason, the technicians apply high temperature and pressing factors to the gathered plates.
Something essential to note here is that they apply the temperature on the plates with the assistance of heater warming or electric warming.

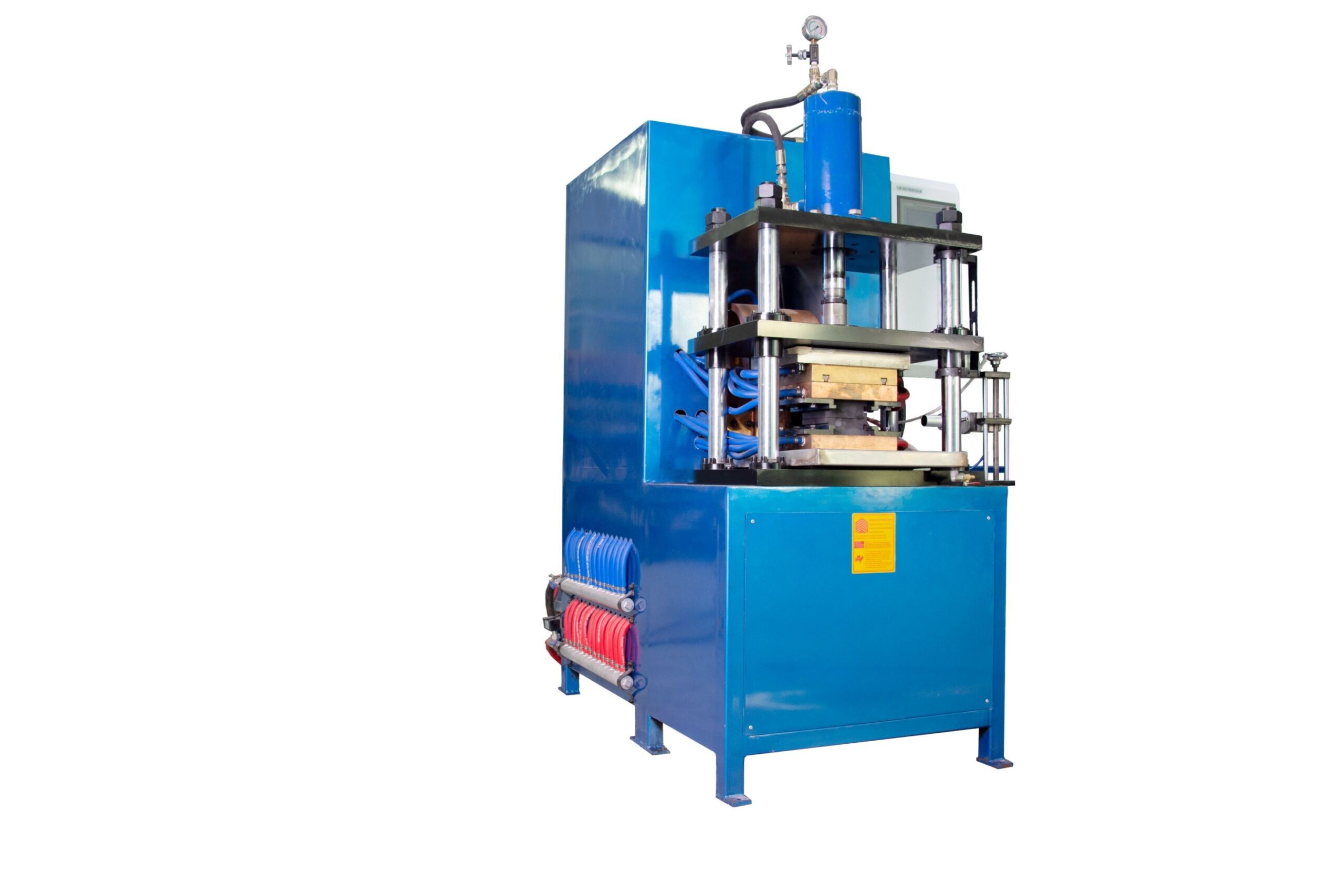

Furthermore, the technicians even apply a high pressing factor to the collected plates with the assistance of the water-powered press. A few groups additionally apply high pressing factors with the assistance of gas pressing factor or extra weight.
This interaction requires a more extended span for legitimate dispersion. At the point when the interaction begins, you will see distortion at the interface of the surface. In any case, when dissemination happens effectively, a legitimate interface limit frames.
4. Diffusion of the Plates
When the manufacturers appropriately diffuse the plates into one another, you will see a solid joint. What's more, the interface limit vanishes also leaving behind an unmistakable joint. The framed joint through the cycle has the very properties as that of the base material.
The Advantages
Solid-state diffusion bonding offers a lot of advantages to the users. Let’s take a look at some of them below.
1. Extremely High Precision
The primary purpose behind the popularity of solid-state diffusion bonding is the high exactness size that it gives. That is because dissemination holding is an association innovation of a strong state. There is no contribution of cementing and metal liquefying all the while.
Furthermore, the pressing factor is incredibly low too. Accordingly, it can without much of a stretch square the creation of naturally visible disfigurement. This is the thing that gives the high accuracy size and math of the parts that are reinforced.
2. Covers Large Area
You can accomplish enormous region associations with the assistance of dispersion holding. In any case, something critical to note here is that you need to circulate the pressing factor consistently on the off chance that you need to accomplish the huge size area.
3. Incredible Joint Performance
Solid-state diffusion bonding offers amazing joint execution to the clients. The joints framed through dissemination holding offer strength as well as a steady quality and great vacuum fixing.
Moreover, the properties and microstructure of welded joints for homogenous materials are equivalent to the base material utilized. Also, the physical and substance properties don't change after the holding too.
Solid-State Diffusion Bonding – The Applications
There is no denying the fact that solid-state diffusion bonding offers a lot of advantages to the users. For this reason, the technology is used in a range of applications as well. Let’s take a look at the applications of solid-state diffusion bonding below.
- The most regular utilization of solid-state diffusion bonding is to weld refectory materials that are utilized in atomic and aviation ventures.
- You can utilize it to weld disparate materials also. Some regular models incorporate Cu to Al or Cu to Ti.
- Solid-state diffusion bonding is likewise used to weld zirconium and titanium metals alongside their amalgams.
- You can even utilize the technique to weld nickel amalgam. Instances of nickel composites are Created Udimet and Inconel.
Final Words
Solid-state diffusion bonding is an incredibly helpful cycle that offers a ton of benefits to the clients. The fortified materials not just show similar mechanical and actual qualities as the parent materials yet you can without much of a stretch test them through elastic testing too. Get in touch with us now for more information!
